Titon Firesafe® Air Range
The original low-resistance metal terminal
The market leader
The new Titon FireSafe® Air Brick Range
Titon’s range of Firesafe airbricks are designed for powered ventilation systems offering low resistance to airflow, but high resistance to fire as set out in Approved Document B (fire safety) volume 1: Dwellings, 2019 edition.
The range comprises the award winning single and double Titon FireSafe® Air Brick – a metal non-combustible compact grille ideal for new/refurbished houses and apartments, and our new Titon FireSafe® 100mm Push Through Wall Kit – a circular high flow terminal ideal for new build, refurbishment and social housing residential applications.

Roto AL Designo is the elegant fully concealed hardware for aluminium windows up to 150kg sash weight. It meets the most stringent demands of planners and architects with regard to perfect appearance, functionality and ease of fabrication.

Roto AL Designo is the elegant fully concealed hardware for aluminium windows up to 150kg sash weight. It meets the most stringent demands of planners and architects with regard to perfect appearance, functionality and ease of fabrication.

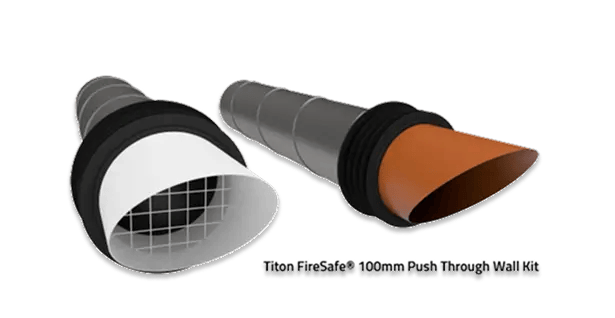

Titon FireSafe® 100mm Push Through Wall Kit

The new Titon FireSafe® 100mm Push Through Wall Kit is a circular high flow terminal designed for powered ventilation systems offering low resistance to airflow, but high resistance to fire as set out in Approved Document B (fire safety) volume 1: Dwellings, 2019 edition.
Ideal for new build, refurbishment and social housing residential applications, it is constructed from sheet steel (A1) and polyester powder coated to classification A2-s1, d0.

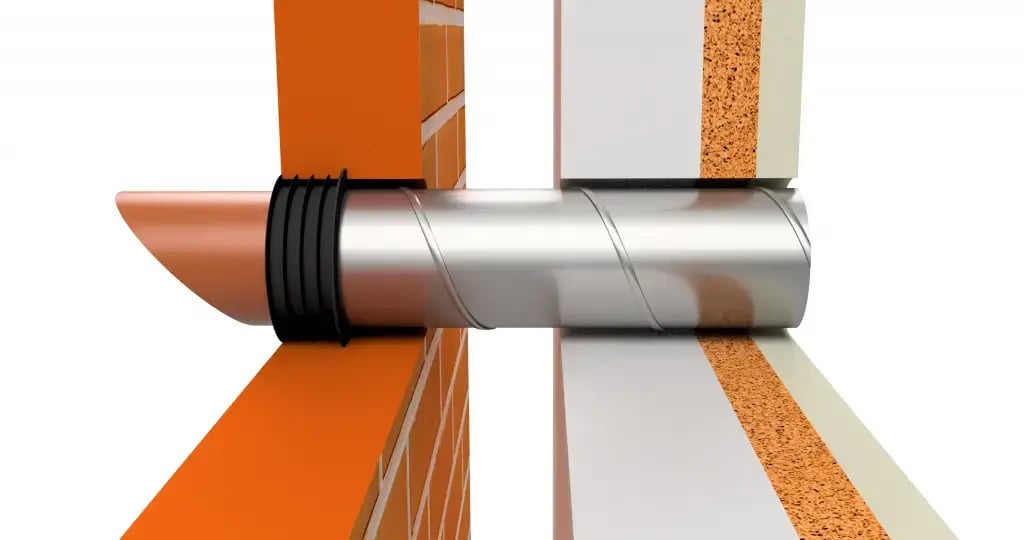

Titon FireSafe® 100mm Push Through Wall Kit is designed to be installed from the inside of the dwelling and will create a seal to the external all.
The range consists of a Ø100 round version at 630mm long.

Roto AL Designo is the elegant fully concealed hardware for aluminium windows up to 150kg sash weight. It meets the most stringent demands of planners and architects with regard to perfect appearance, functionality and ease of fabrication.
Features
Constructed from 0.6mm electrogalvanized sheet steel (A1) and polyester powder coated (terminal only) to classification A2-s1, d0.
Polyester powder coating meeting EN13501-1 classification A2-s1,d0
Ideal for retrofit where mould and condensation are a major problem
Designed for installation with Titon Ultimate® dMEV
Can be cut to desired wall thickness
Performance tested to BS EN13141-2:2010
Corrosion resistance – salt spray tested to BS EN ISO 9227:2012
Special paint finishes available depending on quantity
Registered Design
Special paint finishes available depending on quantity
Compatible with thermal and rigid ducting
Compatible with Titon’s range of MEV fans
Rubber round gasket to seal with external wall
Complies with the latest standard as set out in Approved Document B (fire safety) volume 1: Dwellings, 2019 edition
High flow terminal designed for powered ventilation systems offering low resistance to airflow and high resistance to fire

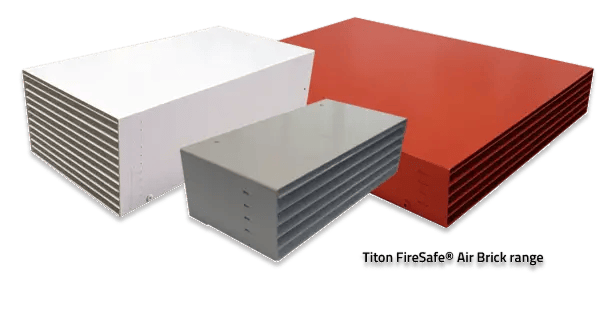

Titon FireSafe® Air Brick range

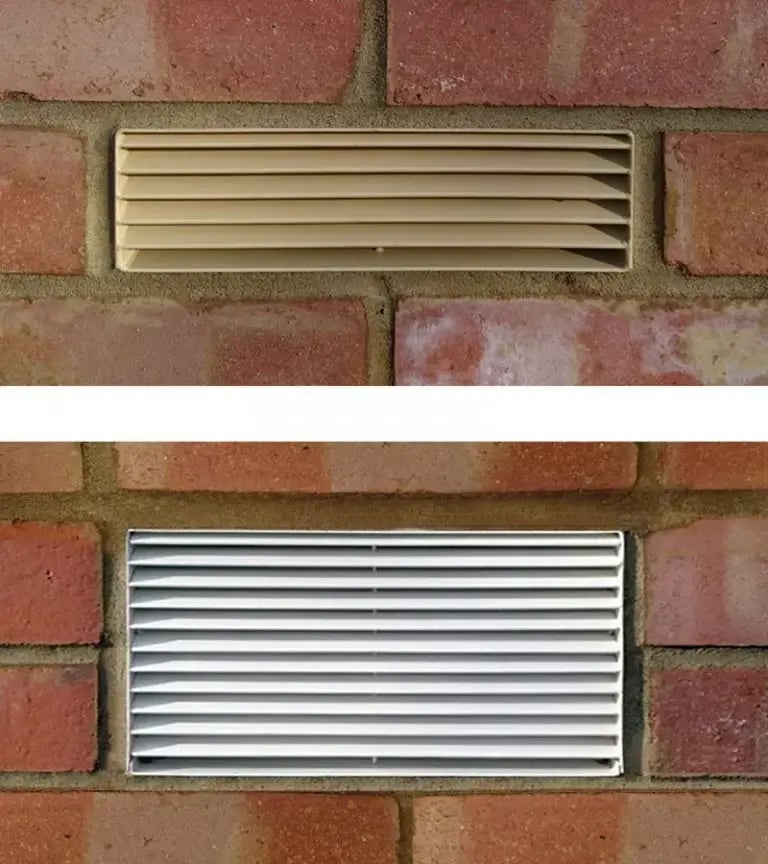

The new Titon FireSafe® Air Brick is a metal non-combustible compact grille ideal for new/refurbished houses and apartments.
Designed with architects, mechanical engineers, contractors and local authorities in mind, the product is an upgrade of Titon’s (plastic) Q Plus High Flow Brick and can easily be built into external walls during construction.
The new Titon FireSafe® Air Brick is a unique high flow terminal designed for powered ventilation systems offering low resistance to airflow, but high resistance to fire as set out in Approved Document B (fire safety) volume 1: Dwellings, 2019 edition.

Products available:
- Titon FireSafe® Single Air Brick
(204x60x100/300 and 330x60x100/400/500) - Titon FireSafe® Double Air Brick (204x128x100/400/500).
Both available in standard or bezelled form.

Roto AL Designo is the elegant fully concealed hardware for aluminium windows up to 150kg sash weight. It meets the most stringent demands of planners and architects with regard to perfect appearance, functionality and ease of fabrication.
Features
High flow terminal designed for powered ventilation systems offering low resistance to airflow and high resistance to fire
Up to 3.3kW total cooling (subject to volume flow and relative humidity)
Material 1mm Electrogalvanized Sheet Steel, fire class A1 ‘no contribution to fire’
Equivalent to many brick sized grilles and additional brick and half size options
Designed for both 204×60 & 220×90 ducting
Complies with the latest standard as set out in Approved Document B (fire safety) volume 1: Dwellings, 2019 edition
Bezelled version for use with exterior cladding instead of brickwork
Extensive versatile range for different installation options
Registered Design
Special paint finishes available depending on quantity
Performance tested to BS EN13141-2:2010
Corrosion resistance – salt spray tested to BS EN ISO 9227:2012
Optional lengths available at request
Compatible with thermal and rigid ducting
Case Study – Timber Works, Mill Road Cambridge
Join our subscribers
By submitting this form, you agree to our Privacy Policy.
CIBSE CPD now available - Introduction of Metal Air Bricks for Building Applications into External Walls

The CPD was developed in part to the response to Dame Judith Hackitt’s recommendations in her post Grenfell Tower review of building safety, for external walls of buildings to meet a Class A2 specification. The CPD challenges current practices and legislation in place, specifically looking at Residential/Domestic applications within Approved Document B.

The presentation focuses on:
- Analysing high flow terminals for powered ventilation systems and how they affect the fire safety of a system depending on the application and product
- Challenging current ethos and mentalities of current designs and specifications
- Reviewing ‘good practice’ and looking at current system designs.
For a full list of our CPD’s available, please visit our CPD page.
To book this CPD fill in this form or for more information, please fill out the form below.

Roto AL Designo is the elegant fully concealed hardware for aluminium windows up to 150kg sash weight. It meets the most stringent demands of planners and architects with regard to perfect appearance, functionality and ease of fabrication.
